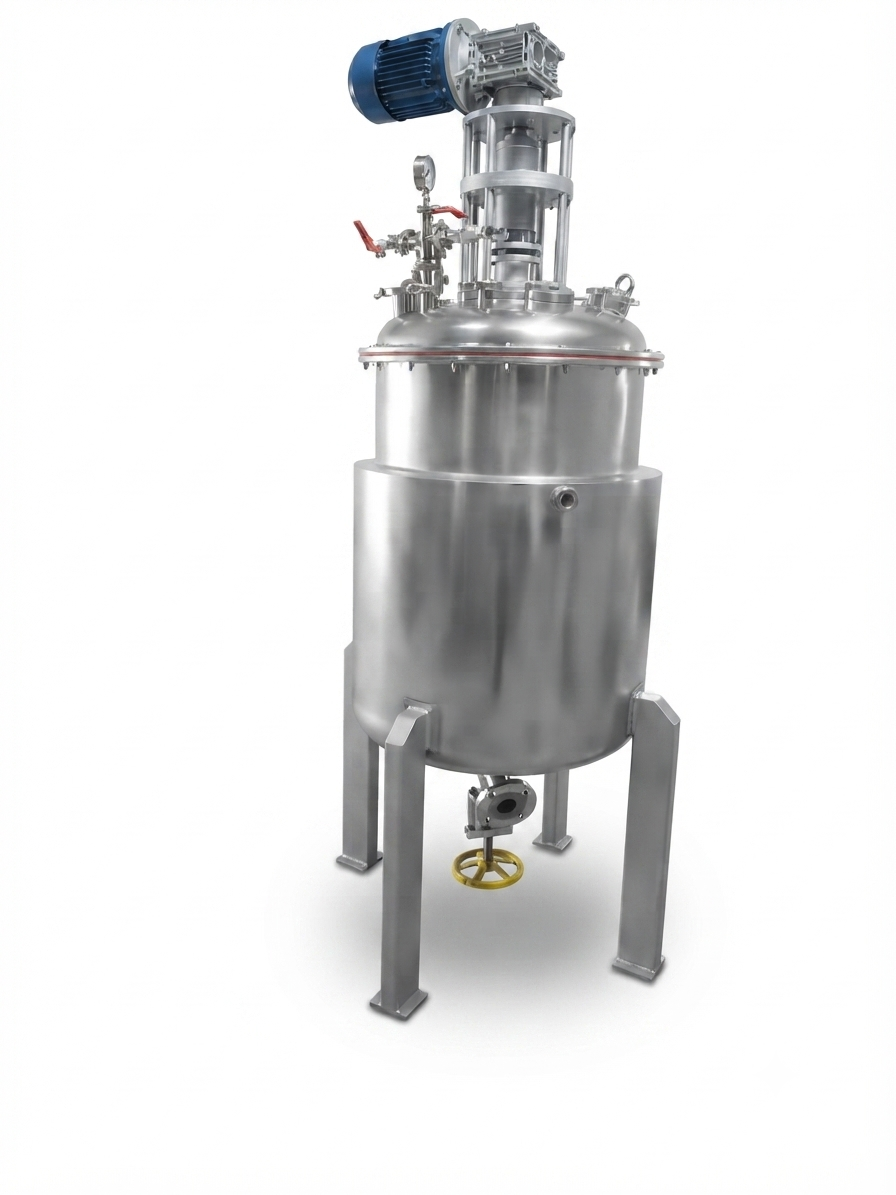

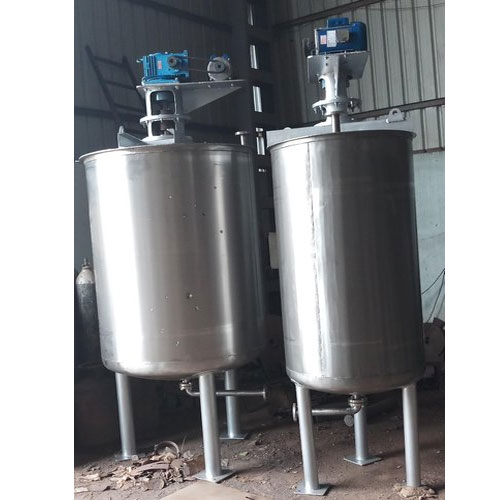

High-Performance Jacketed Vessels: Advanced Thermal Regulation

In the processing of temperature-sensitive chemicals, pharmaceuticals, and food products, uniform heat distribution is essential. Our Jacketed Vessels provide an expansive surface area for heating or cooling, ensuring that your product reaches the desired temperature without localized overheating or “hot spots.” Unlike direct heating methods, the jacketed design creates a secondary chamber around the main vessel, allowing for the circulation of steam, oil, or chilled water.

We offer three specialized configurations—Basic, Advance, and Pro—to match the complexity of your production cycles and regulatory requirements.

---

Technical Specifications & Model Comparison

Our Jacketed Vessels are engineered for durability and thermal efficiency, featuring a reinforced outer jacket and a precision-machined inner shell.

Feature Comparison Table

Feature	Basic Model	Advance Model	Pro Model
Jacket Type	Conventional Full Jacket	Dimple Jacket / Baffled	Honeycomb / Split Jacket
Inner Shell Material	SS 304	SS 316	High-Grade SS 316L
Agitator Type	Anchor / Paddle	Turbine / Scraped Surface	High-Shear Homogenizer
Surface Finish	Matte Finish (180 Grit)	Mirror Finish (240 Grit)	Electropolished (Ra < 0.4 µm)
Insulation	Glass Wool	Rockwool with SS Cladding	Vacuum / Ceramic Fiber
Control Interface	Manual Valve Control	Digital Temperature Indicator	PLC Touchscreen / SCADA
Cleaning System	Manual Wash	Spray Ball (Static)	Rotary Jet CIP / SIP Ready

---

Detailed Model Breakdown

1. Basic Model: Reliable Batch Processing

The Basic Model is a cost-effective solution for standard mixing and heating applications where extreme pressure or rapid cooling cycles are not required.

• Conventional Jacket: Features a full-surround jacket that provides consistent heating for low-to-medium viscosity liquids.

• Durable Build: Constructed from high-quality SS 304, offering excellent resistance to oxidation and standard industrial chemicals.

• Manual Operation: Designed for facilities that prefer mechanical reliability with manual steam and water inlet controls.

2. Advance Model: Enhanced Thermal Efficiency

The Advance Model is engineered for faster heat transfer rates and more demanding industrial environments, such as intermediate chemical synthesis.

• Baffled Jacket Design: Internal baffles are welded into the jacket to force the heating/cooling media into a spiral path, significantly increasing the heat transfer coefficient.

• Scraped Surface Agitation: Available with scrapers that prevent product build-up on the inner walls, ensuring maximum thermal exchange even with viscous materials.

• Integrated Monitoring: Features dual-channel digital sensors to track both the jacket media temperature and the internal product temperature simultaneously.

3. Pro Model: Ultra-Precise & Sterile

Our Pro Model is the definitive choice for the pharmaceutical and biotech industries (GMP/FDA compliant), where sterility and data logging are mandatory.

• Dimple/Honeycomb Jacket: This advanced geometry allows for higher jacket pressures with thinner vessel walls, improving thermal responsiveness and reducing energy consumption.

• Aseptic Design: Features a completely weld-free internal environment with electropolished surfaces and flush-bottom discharge valves to eliminate “dead legs” where bacteria could grow.

• Automated Thermal Profiling: A PLC-based system manages the entire cycle—heating, holding, and rapid cooling—with automated pneumatic valves and full data logging for audit trails.

• CIP/SIP Integration: Fully compatible with Clean-in-Place and Steam-in-Place protocols, ensuring the vessel is sterile between batches without disassembly.

---

Key Benefits of Our Jacketed Design

• Uniform Heating: The large contact area prevents “scorching” of sensitive products, making it ideal for dairy, chocolate, and volatile chemicals.

• Superior Insulation: All models feature a high-density insulation layer between the jacket and the outer cladding, keeping the exterior safe to touch and minimizing energy loss.

• Customizable Agitation: From low-speed blending to high-speed emulsification, our drive systems are sized specifically for your product’s viscosity.

• Heavy-Duty Support: Mounted on robust stainless steel tubular legs with adjustable bullet feet for easy leveling on any floor surface.

---

Industrial Applications

• Pharmaceuticals: Vaccine preparation, ointment manufacturing, and syrup blending.

• Cosmetics: Cream and lotion emulsification and wax melting.

• Food & Dairy: Sauce cooking, milk pasteurization, and beverage cooling.
