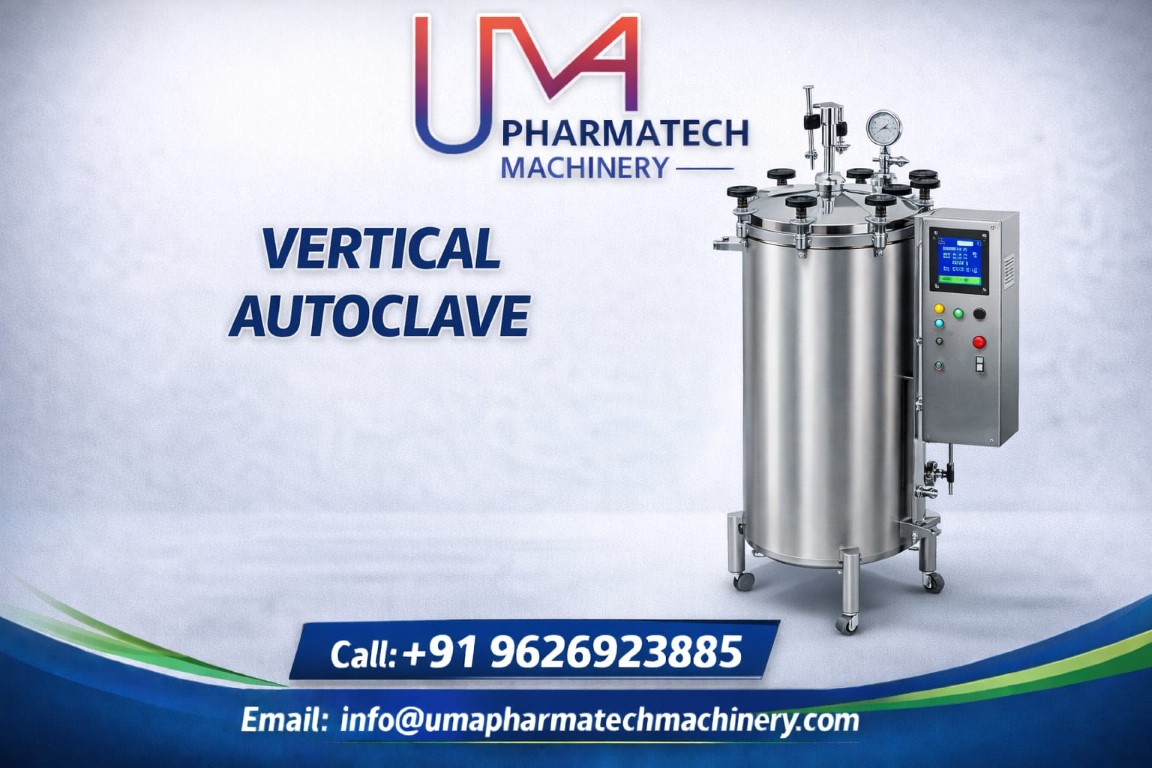

Vertical Autoclave

Vertical Autoclave

High-Performance Vertical Autoclaves: The Pinnacle of Sterilization Technology

In laboratory and medical environments, the integrity of your results depends entirely on the sterility of your equipment. Our latest line of Vertical Autoclaves is engineered to provide uncompromising safety, precision, and ease of use. Whether you are running a high-volume clinical lab or a specialized research facility, our three distinct tiers—Basic, Advance, and Pro—ensure there is a perfect fit for your specific sterilization requirements.

---

Technical Specifications Overview

Our Vertical Autoclaves are designed with a space-saving cylindrical chamber and a top-loading configuration, making them ideal for sterilizing bulky instruments, glassware, and media.

Feature Comparison Table

Feature	Basic Model	Advance Model	Pro Model
Control System	Analog / Semi-Digital	Microprocessor Digital	Touchscreen PLC Control
Pressure Range	15 – 20 PSI	15 – 22 PSI	15 – 30 PSI
Temperature Range	Up to 121°C	121°C – 125°C	121°C – 134°C
Chamber Material	SS 304	SS 304 / SS 316	High-Grade SS 316L
Safety Valves	Spring Loaded	Dual Safety Valves	Multi-tier Digital Safety
Data Logging	Manual	Optional USB	Built-in Wi-Fi & Thermal Printer
Lid Locking	Manual Radial	Improved Wing Nut	Automatic/Pneumatic Locking

---

Detailed Model Breakdown

1. Basic Model: Reliable Simplicity

The Basic Model is the workhorse of the modern laboratory. It is designed for users who require straightforward, dependable sterilization without the complexity of digital interfaces.

• Robust Construction: Features a heavy-duty stainless steel (SS 304) chamber and an outer body finished with heat-resistant epoxy coating.

• Manual Precision: Equipped with a precision pressure gauge and a spring-loaded safety valve for mechanical reliability.

• Ease of Maintenance: Modular heating elements allow for quick servicing and minimal downtime.

2. Advance Model: Enhanced Control

The Advance Model bridges the gap between manual operation and full automation. It introduces digital monitoring to ensure repeatable results every cycle.

• Microprocessor Controller: Features a bright LED display showing real-time temperature and remaining cycle time.

• Automatic Purging: Includes a solenoid valve for automatic air purging, ensuring a pure steam environment for better heat penetration.

• Low Water Cut-off: An integrated sensor protects the heating elements by automatically shutting down the system if water levels drop below the safety threshold.

3. Pro Model: The Intelligent Sterilizer

Our Pro Model is the ultimate solution for regulated environments (GLP/GMP). It offers total automation and comprehensive data traceability.

• Smart Touch Interface: A high-resolution PLC touchscreen allows users to program custom cycles or select from pre-validated presets.

• Advanced Drying Cycle: Features a post-sterilization drying pulse to ensure that surgical wraps and porous loads emerge moisture-free.

• Total Traceability: Includes an onboard thermal printer and USB export capabilities, documenting every parameter for compliance auditing.

• Triple Safety Protocol: Combines mechanical safety valves, digital over-temperature alarms, and an emergency stop button for maximum operator protection.

---

Key Features & Benefits

• Uniform Heat Distribution: The vertical orientation and advanced heating jacket design ensure there are no “cold spots” within the chamber.

• Durable Gaskets: All models utilize high-quality food-grade silicone gaskets that withstand extreme pressure and temperature without deformation.

• Ergonomic Loading: The top-loading design minimizes the physical strain on technicians when handling heavy stainless steel baskets.

• Energy Efficiency: Enhanced insulation reduces heat loss to the room, lowering energy costs and keeping the lab environment comfortable.

Safety Note: All models undergo rigorous hydrostatic pressure testing at 2x the rated working pressure to ensure structural integrity and user safety.

---

Applications

Our Vertical Autoclaves are versatile tools suitable for:

• Microbiology: Sterilizing culture media and glassware.

• Healthcare: Decontaminating surgical instruments and linen.

• Biotechnology: Large-scale waste decontamination and bioreactor preparation.
